| Product SKUs |
 |

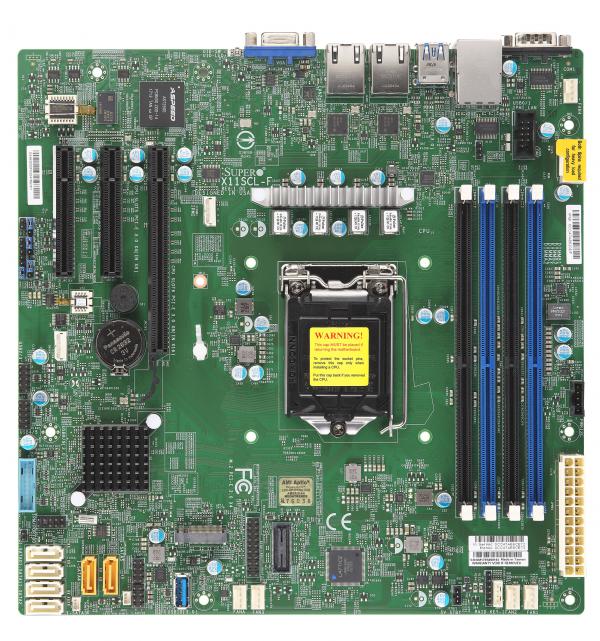

| MBD-X11SCL-F |
|
| |
| Physical Stats |
|
| Form Factor |
|
| Dimensions |
- 9.6" x 9.6" (24.38cm x 24.38cm)
|
| |
| Processor/Cache |
|
| CPU |
- 8th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series.
- Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
|
| Cores / Cache |
|
| |
| System Memory |
|
| Memory Capacity |
- Up to 128GB Unbuffered ECC UDIMM, in 4 DIMM slots
|
| Memory Type |
- 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| *Future support for 128GB via a BIOS update |
| |
| On-Board Devices |
|
| Chipset |
|
| SATA |
- Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Network Controllers |
- Dual LAN with 1GbE with Intel® I210
|
| Graphics |
|
| |
| Input / Output |
|
| USB |
- 6 USB 2.0 ports (2 rear + 4 headers)
- 5 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers, 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
| TPM |
|
|
 |
| Expansion Slots |
|
| PCI-E |
- 1 PCI-E 3.0 x8 (in x16 slot),
- 2 PCI-E 3.0 x4 (in x8 slot)
|
| M.2 |
- M.2 Interface: 1 PCI-E 3.0 x4
- Form Factor: 2280/22110
- Key: M-Key
- Double Height Connector
|
| |
| System BIOS |
|
| BIOS Type |
|
| BIOS Features |
- ACPI 6.0
- SMBIOS 2.7
- Plug and Play (PnP)
- RTC (Real Time Clock) Wakeup
- UEFI 2.7
- USB Keyboard support
- PCI 3.0
|
| |
| Management |
|
| Software |
- IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
| |
| PC Health Monitoring |
|
| Voltage |
- +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
|
| FAN |
- 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
|
| Temperature |
- Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
|
| LED |
- CPU / System Overheat LED, UID/Remote UID
|
| Other Features |
- ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL
|
| |
| Operating Environment |
|
| Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
